Screw Thread Micrometers

The screw thread micrometre has a hardened steel 60 degree anvil and a conical spindle for measuring the pitch diameters of metric or universal screw threads quickly and accurately. For exact, repeatable measurements, a ratchet-stop mechanism applies homogeneous pressure to a workpiece. To reduce wear, measuring surfaces are made of carbide. The ratchet mechanism makes an audible click to verify that the measurement is done at the same force every time. The sleeve has a satin chrome finish, and the thimble has a laser cut scale for easier readability. Baked enamel finish adds toughness and extends the life of the frame.

Part Number : 125-101 Mitutoyo 125-101 Screw Thread Micrometer 0-25mm, 0.4-0.5mm/64-48TPI

Products - Screw Thread Micrometers

Screw Thread Micrometers

Mitutoyo 125-101 Screw Thread Micrometer 0-25mm, 0.4-0.5mm/64-48TPI

Part Number : 125-101

Mitutoyo 125-102 Screw Thread Micrometer 0-25mm, 0.6-0.9mm/44-28TPI

Part Number : 125-102

Mitutoyo 125-103 Screw Thread Micrometer 0-25mm, 1-1.75mm/24-14TPI

Part Number : 125-103

Mitutoyo 125-104 Screw Thread Micrometer 0-25mm, 2-3mm/13-9TPI

Part Number : 125-104

Mitutoyo 125-105 Screw Thread Micrometer 0-25mm, 3.5-5mm/8-5TPI

Part Number : 125-105

Mitutoyo 125-106 Screw Thread Micrometer 25-50mm, 0.4-0.5mm/64-48TPI

Part Number : 125-106

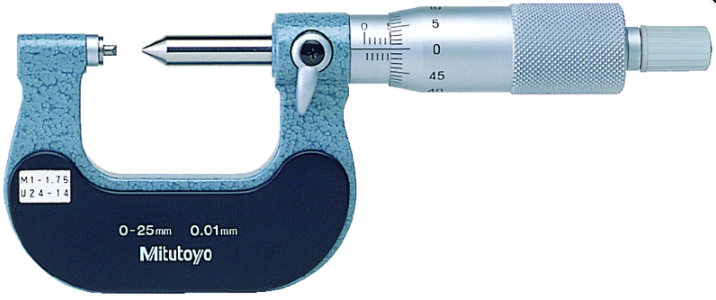

Mitutoyo 125-107 Screw Thread Micrometer 25-50mm, 0.6-0.9mm/44-28TPI

Part Number : 125-107

Mitutoyo 125-108 Screw Thread Micrometer 25-50mm, 1-1.75mm/24-14TPI

Part Number : 125-108

Mitutoyo 125-109 Screw Thread Micrometer 25-50mm, 2-3mm/13-9TPI

Part Number : 125-109

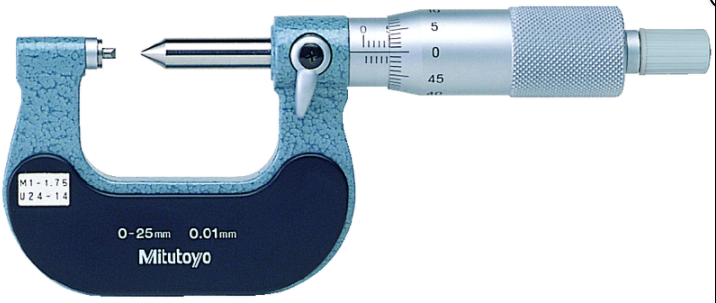

Mitutoyo 125-110 Screw Thread Micrometer 25-50mm, 3.5-5mm/8-5TPI

Part Number : 125-110

Mitutoyo 125-111 Screw Thread Micrometer 50-75mm, 0.6-0.9mm/44-28TPI

Part Number : 125-111

Mitutoyo 125-112 Screw Thread Micrometer 50-75mm, 1-1.75mm/24-14TPI

Part Number : 125-112

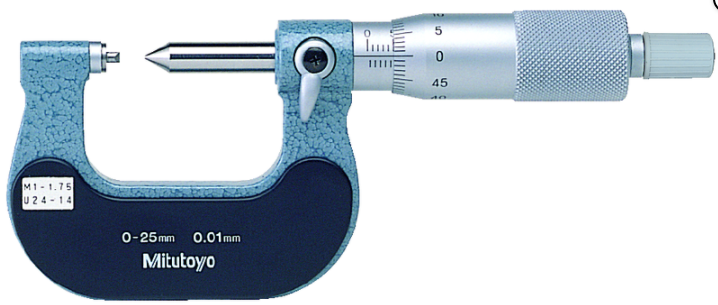

Mitutoyo 125-113 Screw Thread Micrometer 50-75mm, 2-3mm/13-9TPI

Part Number : 125-113

Mitutoyo 125-114 Screw Thread Micrometer 50-75mm, 3.5-5mm/8-5TPI

Part Number : 125-114

Mitutoyo 125-115 Screw Thread Micrometer 50-75mm, 5.5-7mm/4.5-3.5TPI

Part Number : 125-115

Mitutoyo 125-101, Mitutoyo 125-102, Mitutoyo 125-103, Mitutoyo 125-104, Mitutoyo 125-105, Mitutoyo 125-106, Mitutoyo 125-107, Mitutoyo 125-108, Mitutoyo 125-109, Mitutoyo 125-110, Mitutoyo 125-111, Mitutoyo 125-112, Mitutoyo 125-113, Mitutoyo 125-114, Mitutoyo 125-115
