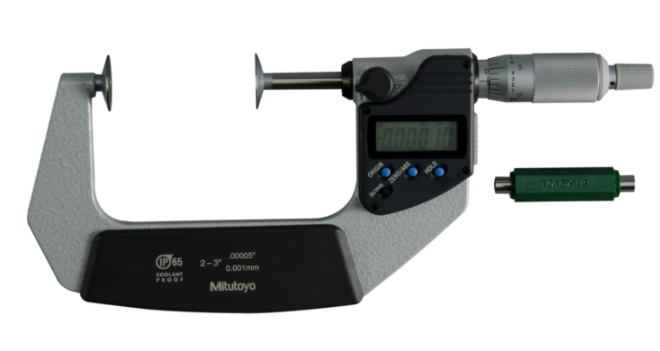

Mitutoyo 323-352-30 Digital Disc Micrometer IP65 Inch/Metric, 2-3", Disk=20mm

Brand :

Stock Status : Contact us for delivery

Brand :

Stock Status :

Out of Stock

Part Number : 323-352-30

This Digimatic Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits: Measuring the root tangent length of spur and helical gears. You can measure recessed features that are difficult to reach with a standard micrometer.

Specification
Features
Catalog

Specifications

Details

Mass (main unit)

555 g

Battery Life

Approx. 2.4 years

Delivered

Including box, setting standard

Data Output

Yes

Analog/Digital

Digital

Accuracy

±0.0003

Measuring spindle

With spindle lock, ø6.35 mm, spindle pitch 0.635 mm

Inch-Metric

Inch/Metric

Flatness

0.00004

Parallelism

0.0003

Digital step

0.00005

ZERO/ABS

Yes

Scale

Thimble and sleeve satin chrome finish, ø18 mm

Model Options

Mitutoyo 323-352-30 Digital Disc Micrometer IP65 Inch/Metric, 2-3", Disk=20mm

Part Number : 323-352-30

This Digimatic Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits: Measuring the root tangent length of spur and helical gears. You can measure recessed features that are difficult to reach with a standard micrometer.
